The Small Block Ford (SBF) engine family is famous. It includes the 289, 302, and 351 Windsor engines. These motors are the foundation for countless performance builds. Many builders choose to stroke these engines. This means installing a crankshaft with a longer throw. This creates more cubic inches and massive torque. A 302 becomes a 347. A 351W becomes a 408 or a 427.

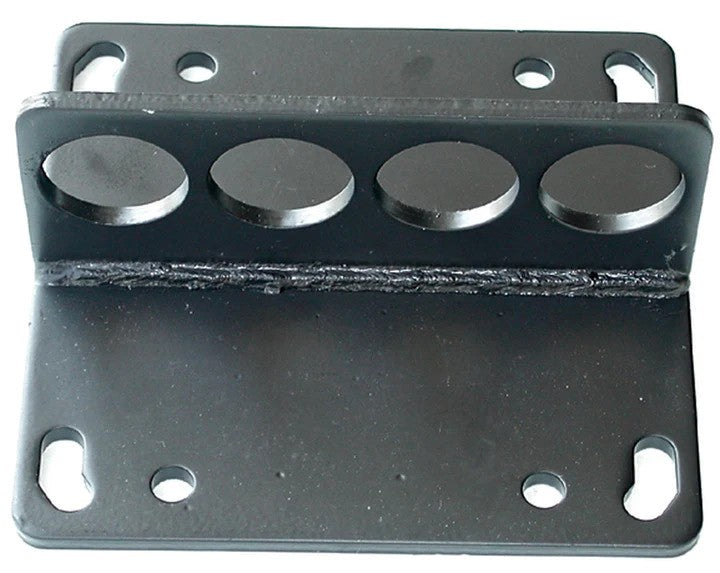

The question then becomes simple. Is the standard lifting tool safe for this modified machine? Many people use a simple SBF engine plate. This plate usually bolts right onto the intake manifold. We need to look closely at the forces involved. A stock 302 weighs around 460 pounds. Once you add heavy forged internals, a stout stroker crank, high-flow aluminum heads, and a thick intake, the weight quickly climbs. We often see these engines fully dressed tipping the scales near 600 pounds. The hardware holding the engine plate must handle this increased load with zero chance of failure. This is why specialized equipment is so important for performance work.
What Happens to Load Ratings When Displacement Increases?
Engine plates are rated for a certain amount of weight. Most plates are conservatively rated for over 1,000 pounds. This rating usually covers the stress placed on the steel plate itself. It does not automatically guarantee the manifold attachment points are safe.
When you install a stroker kit, the weight changes come from key areas.
● Forged Crankshaft: Stroker cranks are often heavier than stock cast units.
● Connecting Rods: Forged H-beam or I-beam rods add weight and mass.
● Pistons: Thicker, forged pistons are necessary for high compression. These add mass compared to standard hypereutectic pistons.
● Heads and Intake: Aluminum heads are lighter than iron. However, the heavy-duty intake manifold and accessories still create a significant load.
The weight increase is often concentrated low in the block. This means the engine is naturally bottom-heavy. A small increase in total weight translates to a much larger strain on the four carb-stud or intake-bolt points. The load is no longer just vertical. It creates a shearing force as the heavy block tries to pivot.
How Much Clamping Force Do the Intake Bolts Provide?
The entire lift operation relies on only four or six small bolts. These bolts attach the sbf engine plate to the intake manifold. The intake manifold bolts on an SBF are generally small. They are usually 5/16-inch or 3/8-inch diameter bolts. They are designed to clamp the intake down to create a seal, not to lift hundreds of pounds.
The standard torque specification for SBF intake bolts is very low. It sits around 23-25 foot-pounds of torque. This is a tiny amount of force compared to the load being placed on them during a lift. When we are dealing with a high-compression engine, the quality of the surrounding material is critical. If the manifold is aluminum, which is common on performance builds, the risk increases. Aluminum threads are much easier to strip out than cast iron threads. We must use new, high-grade bolts. We must ensure they have full thread engagement. We need to seat the plate perfectly flat on the manifold surface. Any wobble or gap means the lifting force is applied unevenly. This can instantly damage the threads.
Read More : Motor Hoist Lift Plate Setup Guide for Beginners
Are Multi-Point Slings a Better Idea for Heavy Builds?
Many seasoned engine builders prefer a four-point lifting system. This design uses adjustable chains or straps. The connection points attach to the engine block or the cylinder heads at all four corners.
● Wider Load Distribution: It spreads the weight across four connection points. These are often the block's strongest areas.
● Bypass the Intake: You completely remove the intake manifold as the lifting point. This eliminates the risk of stripping those small aluminum threads.
● Total Control: When combined with a load leveler, you gain full three-dimensional control. You can adjust the angle both side-to-side and front-to-back.
We know some intake-mounted plates offer six-bolt patterns. These bolt to the lower EFI intake manifold runners. This is stronger than the four-bolt carburetor flange plates. They still rely on the aluminum intake material, though. For maximum peace of mind and for the heaviest builds, a four-point lift off the cylinder head bolt holes is superior. We advise you to use a purpose-built sling or heavy-duty brackets. Never use frayed or cheap chains.
So, Are SBF Engine Plates Safe for Strokers? The Verdict.
The simple answer is yes, but with major caveats.
A quality, thick steel engine plate itself has the necessary strength. The plate will not bend or break. The weakness is always the connection points to the engine.
Safety must be the number one priority. Do not use an old, questionable tool. Do not try to save ten dollars on hardware. We encourage every builder to invest in a quality adjustable load leveler. That tool alone fixes the balance issue and makes the lift far less stressful.
Here at EngineLiftPlates, we design and manufacture our tools with this weight in mind. We build our plates from thick, heavy-duty steel. We want you to trust the tool holding your investment. A freshly built 427-cubic-inch stroker engine is a major piece of precision engineering. Treat it with the respect it deserves. Do not compromise the lift. A used engine lift may seem like a good deal, but always check its load rating and the condition of its chains and hooks. Inspect every piece of gear before lifting your masterpiece.
Frequently Asked Questions (FAQs)
What is the typical weight of a fully dressed SBF 427 stroker engine?
A fully assembled and dressed 427 stroker based on a 351W block often weighs between 580 and 650 pounds. The exact weight depends on whether you use aluminum or cast iron heads, the intake manifold, and the accessories. This is significantly heavier than a stock 302, which is around 460 pounds.
Can I use a regular strap or chain on a stroker engine?
We strongly recommend avoiding a regular strap or chain wrapped around the heads or manifold. Straps can slip. Chains can scratch a painted valve cover or damage a gasket surface. A purpose-built engine lift plate or a four-point engine sling is the only safe choice. They provide secure, engineered attachment points.
Is Grade 5 or Grade 8 bolt hardware better for lifting an engine plate?
Grade 8 hardware is far superior for lifting applications. It has a higher tensile and shear strength than Grade 5. The bolts that hold the engine are the most stressed component in the setup. We always advise using Grade 8 bolts to ensure maximum safety and resistance to breakage.
Will a load leveler help with the balance of a tilted SBF?
Yes, absolutely. A load leveler is a piece of equipment that connects between the engine plate and the engine hoist hook. It has an adjustable screw mechanism. This lets you change the engine's angle while it is hanging. It is the best way to safely find the center of gravity for an unevenly weighted stroker motor.
