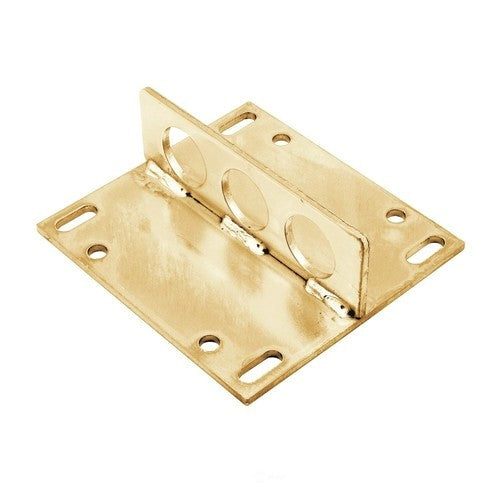

Suspending a fully dressed V8 engine by its intake manifold might feel like a leap of faith to the uninitiated. You are essentially trusting four small bolts and a piece of steel to hold up hundreds of pounds of cast iron and aluminum. However, the physics behind a carburetor lift plate are surprisingly robust when you break down how the load actually moves through the engine. Instead of pulling from the outskirts of the block with chains, you are lifting from the literal heart of the machine. This method centralizes the mass and creates a much more stable environment for both the installer and the vehicle.
At EngineLiftPlates, we designed our hardware to turn that central mounting point into a structural advantage. Most people worry about the threads in the intake manifold stripping or the aluminum casting cracking under the pressure. These fears are usually eased once you realize how the surface area of the plate interacts with the mounting flange. By distributing the vertical pull across the entire carburetor pad, the stress is neutralized before it can cause damage. It turns a potentially nerve-wracking lift into a smooth, predictable process that feels much safer than swinging a motor on loose chains.
The Science of Vertical Load Distribution
Gravity wants to pull the engine straight down, and a standard carb lift plate uses that force to its advantage. When you tighten those four bolts through the plate and into the manifold, you are creating a "clamping force" that unites the plate and the intake into a single unit. The weight isn't just hanging on the threads of the bolts. It is actually being supported by the entire flat surface of the intake flange. This prevents the metal from warping or fatiguing because the pressure is spread out over several square inches rather than being concentrated at a single point.
Aluminum intakes are plenty strong enough for this task because they are designed to handle the vacuum and heat cycles of a running engine. The vertical shear strength of four Grade 8 bolts far exceeds the weight of even a heavy big-block engine. As we lift, the plate remains perfectly flat, ensuring that the pull is straight up and down. This lack of lateral (side-to-side) force is what keeps the threads safe. Chains often pull at weird angles, which can egg out bolt holes, but a flat plate keeps every vector of force exactly where it belongs.
Why the Center of Gravity is Your Best Friend
Finding the balance point of an engine is the hardest part of any swap. If the engine is front-heavy, it will dive toward the floor the moment it leaves the mounts. Most carbureted engines have a center of gravity that sits remarkably close to the carburetor mounting pad. By hooking your hoist here, you are lifting from the "sweet spot" of the assembly. This makes the engine feel much lighter and more manageable as you guide it through the engine bay.
We often see builders struggling with engines that want to rotate or "roll" while they are in the air. This happens because the lifting points are too far apart, creating a long lever arm for the engine to swing on. A plate eliminates this lever arm. Because the connection is rigid and central, the engine stays level without you having to hang your body weight on the harmonic balancer.
Protecting the Intake Gasket Surfaces and Threads
Scuffing a perfectly machined intake surface is a quick way to create a permanent vacuum leak. Using a dedicated plate protects these surfaces by acting as a shield during the move. Unlike chains that can slide, clank, and gouge the aluminum, the plate stays stationary. It covers the open plenum, which also serves the dual purpose of keeping debris, stray nuts, or washers from falling into your intake runners while the engine is out of the car.
● Using the correct bolt length ensures that you utilize every thread available in the manifold.
● Clean, flat plate surfaces prevent "hot spots" of pressure on the aluminum flange.
● Steel plates act as a rigid brace that prevents the manifold from flexing under the weight of the heads.
● Integrated lifting eyes are welded on both sides to provide a fail-safe connection to the crane hook.
When we talk about professional results, we are talking about leaving no trace that the engine was ever pulled. A plate ensures that your valve covers stay pristine and your intake flange remains flat. It is a cleaner way to work. You don't have to worry about the "sawing" action of a chain against the back of the block or the front of the heads. Everything stays exactly as you built it, allowing for a "show quality" installation every time.
Read More: Balance Any Engine Safely With Adjustable Lifting Plates
Frequently Asked Questions
Is it safe to lift a cast iron big block with an aluminum intake?
Yes, it is perfectly safe as long as the bolts are threaded in at least 1.5 times the diameter of the bolt. The weight is distributed across the entire carburetor pad, which is a very strong part of the manifold casting.
Do I need to use a gasket under the lift plate?
You don't need a gasket for strength, but many people use an old one to prevent any minor scuffing on the manifold surface. The most important thing is that the plate sits flat against the metal.
What kind of bolts should I use for the plate?
Always use Grade 8 bolts. Avoid using the long, thin bolts that come with some carburetor kits. You want a bolt that is specifically sized to provide maximum thread engagement without bottoming out in the hole.
Can I use a lift plate with a dual-quad or tunnel ram intake?
You would need a plate specifically designed for those bolt patterns. Using a single-carb plate on a multi-carb intake would put the weight off-balance and could damage the manifold.
Will the plate work on an angled intake manifold?
Most intake pads are leveled relative to the engine's natural sitting position. The plate will hold the engine at that same angle, which usually helps when sliding the engine into the transmission.
Achieving a Safer Shop Environment
Safety in the garage is about reducing variables. Chains introduce a lot of "unknowns"—from the strength of the links to the way the hook settles. A plate removes those variables by providing a fixed, engineered mounting point. When the load is predictable, the environment is safer for everyone involved. You can focus on the technical aspects of the build, knowing that the heavy lifting is being handled by a tool designed for that exact purpose. It turns a stressful day into a rewarding one.
EngineLiftPlates offers a variety of specialized lifting solutions that focus on maintaining the integrity of the engine during transport. The company provides hardware crafted from heavy-duty materials to ensure that even the heaviest domestic V8s are supported with absolute stability. Each product is designed to fit specific intake patterns, providing a seamless interface between the hoist and the motor.
